Geotechnical Centrifuge
Mechanical Specifications

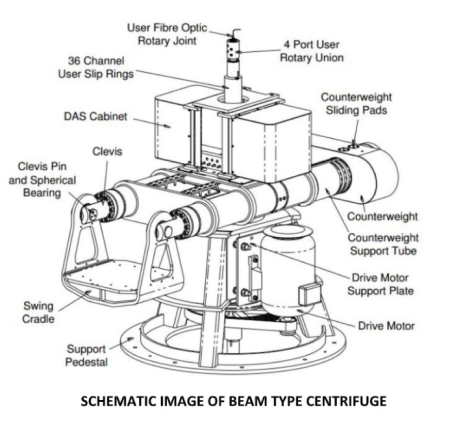

Type - Beam Type Centrifuge
Radius - 1.1 Meter
RPM - 400.
G Force - Up to 200g
Mechanical beams with Swing Cradle/ Basket
Rotary Union
Clevis/ clevis pin and Bearings
Pedestal Support
Internal Tank Size - 270L x 135W x 210 H
Counter weight support with counter weight
Three phase Motor and Drive Unit
Main Axel shaft
Slip rings
Pedestal Support base
Vibration absorbers.
Top Cabinet
Camera mounting arrangements.
Data Acquisition System
Sensors- LVDT, Accelerometers, PPTs
Data Loggers
Controller unit
Junction boxes
Cables
Software
Civil Structure
Safety Wall for Centrifuge Built Circular having 3.2 mtr internal diameter - 250 mm thk highly reinforced concrete
Foundation - as per our design
Top Safety covering Grill
Minimum required area for installation of Centrifuge Test Setup 20 Ft x 20 ft x 20 ft height
Minimum required area for Control room 15 ft x 10 ft x 10 ft height
Leveled floor with Vitrified tiles or Industrial Tiles anti-skid, Impact resistant type
Wide Windows for ventilation
Entry for Test Setup room: 600mm wide or more x 2500mm height. Or Rolling Shutter
Walls and roof: Double brick with 12mm plaster
Electrical Requirements
Input: Voltage- 440V AC Three Phase for Setup room
Control room: Small Power 4 sets at different positions in the room, each Board of 18
Module consisting of MCB 230V 32 amps - 1no, Triple point socket 6/13A dual - 5 nos and switches for the same.
Lighting must be off center to ensure even illumination around room. Switches for lights, fans/ AC on separate boards apart from above.
Earth point, copper wire for machine earth.
