High Speed Ballistic Test Setup

We have been developing laboratory launchers for more than 10 years. We have delivered cutting-edge gas guns to many prestigious research centres and universities throughout India.

Our Dual Diaphragm light gas guns are used for impact and ballistic experiment. The repeatability of these gas guns are highly proven.

Our Ballistic Test Setups are the best equipment to test the behaviour of your materials and structures ,the system accelerates payloads in 1000 m/s excess, for certification testing to support you in the development of new products more efficiently. We make customized laboratory gas guns with high repeatability results. These test setups are designed to satisfy your most demanding requirements.

Different projectile shapes can be used and velocities can be adjusted to get ballistic limit and energy absorption of materials.

Mechanical System

Gas Gun for striker Bar firing mechanism, Max Pressure - 4500 psi.
Steel Barrel Gun Drilled and Honed
Precision high pressure valves and Quick release valves
Gauges and fitting for Pressure calculations
Control Panel for Operation of the system
Mounting for Barrel
Quick Release port for Projectile Placement

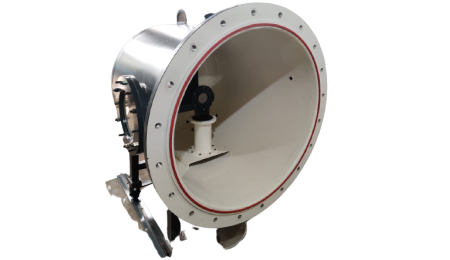

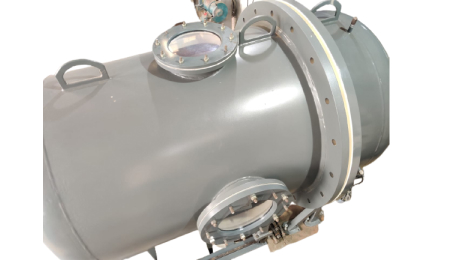

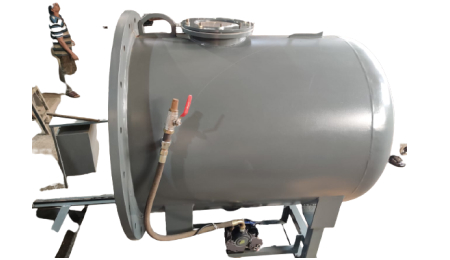

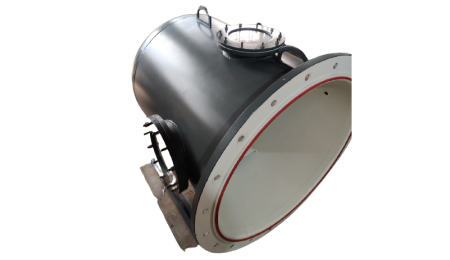

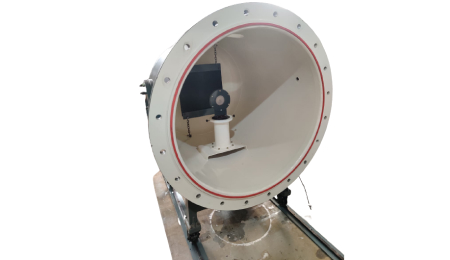

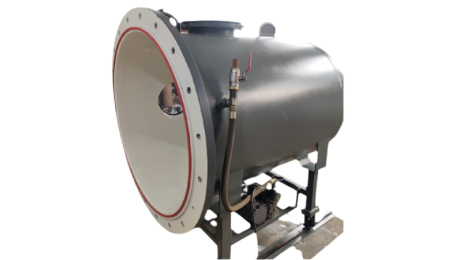

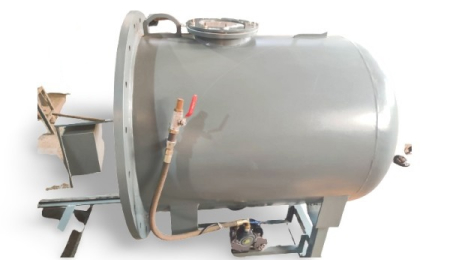

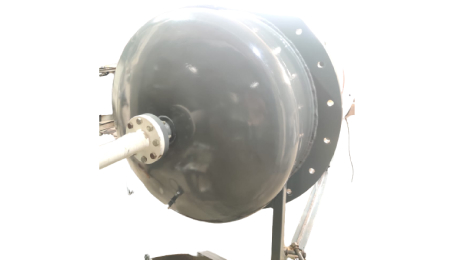

Safety Chamber with Windows for High Speed camera

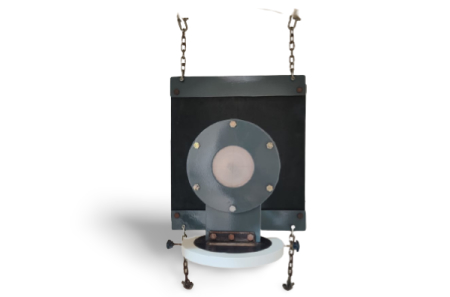

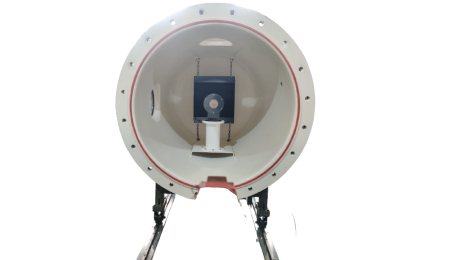

Sample Holding Mount with Tilting Mechanism and Rotary mechanism 360 Deg
Flat frame supports damping pads for Bench top.
High Pressure Reservoir SS.304 Grade 5000 PSI
Hose Pipes and Fittings Max pressure 5000 PSI
Vacuum Pump
Sturdy Bottom Frame Mounting M.O.C. Mild steel, with leveling bolts and grounding provision, fully powder coated
Electrical Connections and fittings
Uniquely designed Velocity measurement device to measure projectile velocities upto 3000m/sec.
